Features:
1. Various Galvanizing Treatments Available
2. More Size of Galvanized Safety Railing Fittings Two Socket Cross
3. Free Samples Support
4. Bigger Order Cheaper Price
5. QA Service
6. Comprehensive After Service
1. Various Galvanizing Treatments Available
2. More Size of Galvanized Safety Railing Fittings Two Socket Cross
3. Free Samples Support
4. Bigger Order Cheaper Price
5. QA Service
6. Comprehensive After Service
119 Galvanized Safety Railing Fittings Two Socket Cross is used to add two pipes on the same plane to form a cross structure for a specific position of a pipe. We can use it to add rails to a horizontal safety railing, or add a cross structure to a DIY structure.
It can only be used in an unfinished closed structure. If you want to add a cross structure to an already closed system, please use 119A.
It is used by fixing it to the designated column, tightening the middle bolt, and inserting the other two pipes into the sockets respectively.
It is made of cast iron sand casting, which is easy to rust when exposed to humid air. Therefore, if you want to extend its life and apply it to more scenes, you need to perform surface treatment such as galvanizing or powder coating.
Basic Info Table of Galvanized Pipe Railing Fittings | ||||||||||||
MATERIAL | Malleable Iron / Ductile Iron | |||||||||||
SURFACE TREATMENT | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | |||||||||||
COLOR | Refer To Pantone Color Card | |||||||||||
Pipe Size | ||||||||||||
PIPE SIZE | ||||||||||||
PIPE MATERIAL | Carbon Steel | |||||||||||
SURFACE TREATMENT | Hot Galvanized / Powder Coating | |||||||||||
COLOR | Refer To Pantone Color Card | |||||||||||

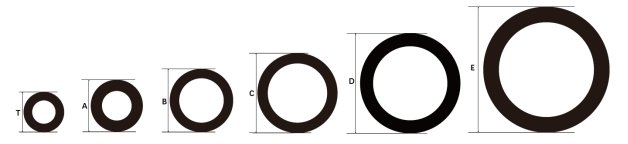

Pipe Sizes Comparison | ||||||||||||
PIPE CODE | Inner Diameter | Outer Diameter | ||||||||||
Nominal (DN) | in | mm | ||||||||||
T | 15 | 1/2" | 21.3 | |||||||||
A | 20 | 3/4" | 26.9 | |||||||||
B | 25 | 1" | 33.7 | |||||||||
C | 32 | 1 1/4" | 42.4 | |||||||||
D | 40 | 1 1/2" | 48.3 | |||||||||
E | 50 | 2" | 60.3 | |||||||||
Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | ||||||||||||

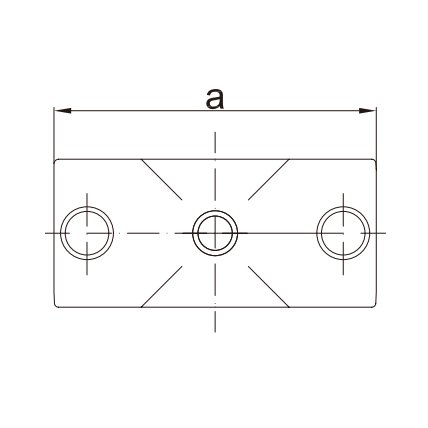

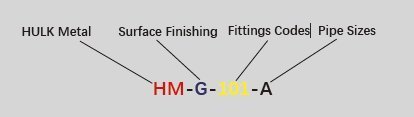

119 | Pipe Size | Surface Finishing | Dimensions(mm) | |||||||||
Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | c | d | |||||
CODE | T | HM-G-119-T | HM-D-119-T | HM-PC-119-T | HM-B-119-T | 70 | ||||||
A | HM-G-119-A | HM-D-119-A | HM-PC-119-A | HM-B-119-A | 80 | |||||||
B | HM-G-119-B | HM-D-119-B | HM-PC-119-B | HM-B-119-B | 96 | |||||||
C | HM-G-119-C | HM-D-119-C | HM-PC-119-C | HM-B-119-C | 120 | |||||||
D | HM-G-119-D | HM-D-119-D | HM-PC-119-D | HM-B-119-D | 135 | |||||||
E | HM-G-119-E | HM-D-119-E | HM-PC-119-E | HM-B-119-E | 168 |

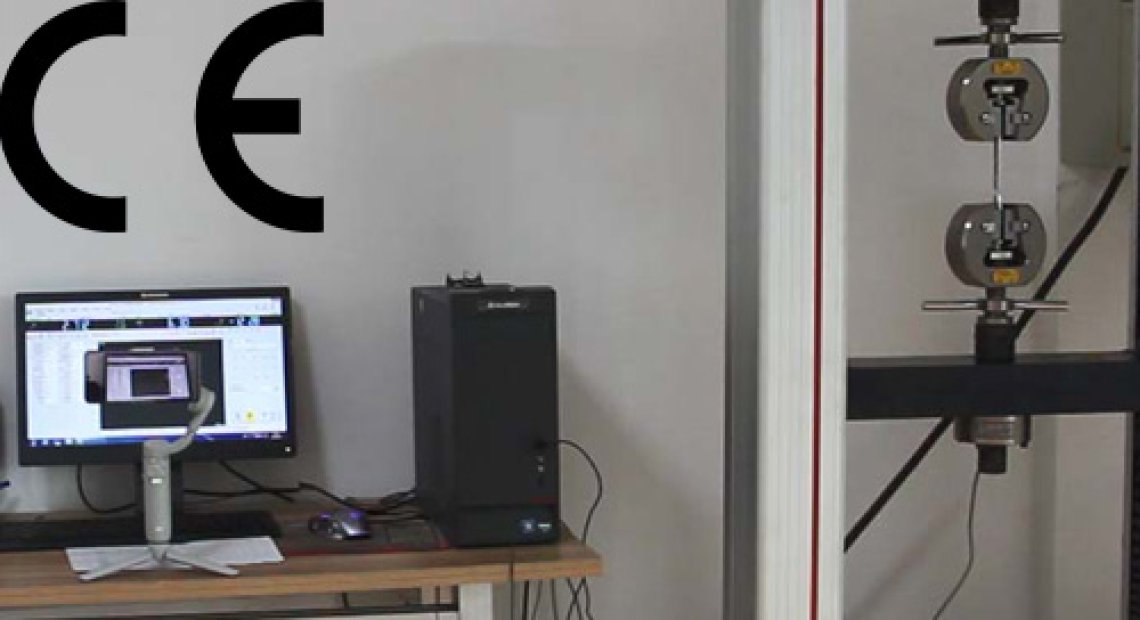

We strictly implement ISO 9001 quality management. Each batch of goods will be strictly tested before dispatch. We will formulate sampling inspection plans according to requirements and attach detailed inspection reports to the goods. Our quality control center has thickness gauges, hardness gauges, tensile testing machines, salt spray testing machines, etc. In addition, we also provide quality assurance services. You can rest assured to place your order with us.

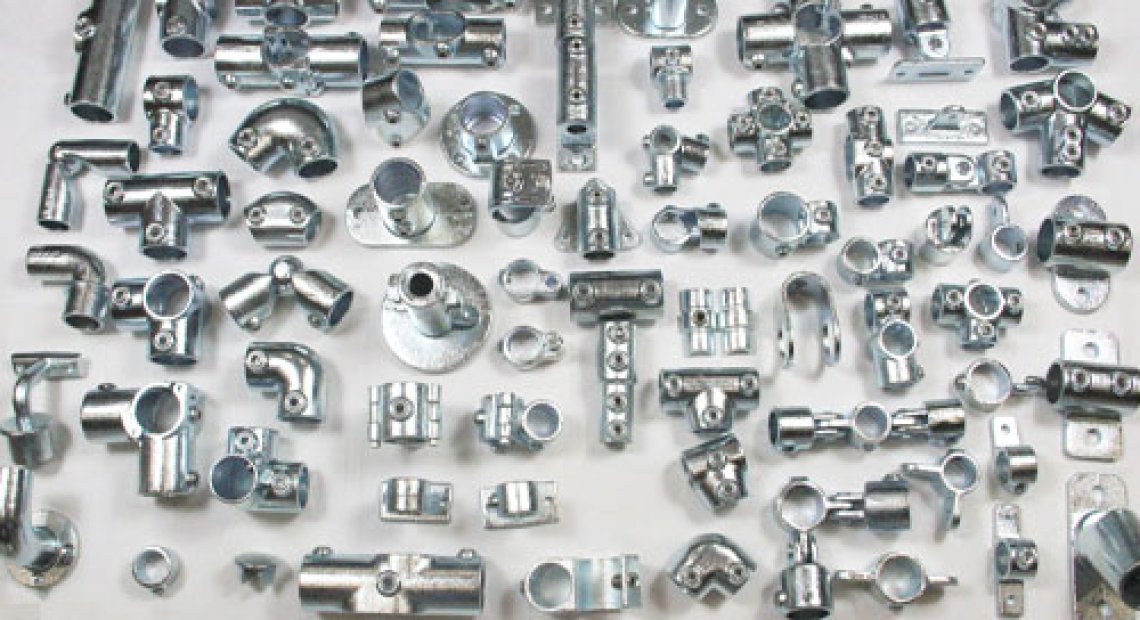

We currently offer Galvanized Safety Railing Fittings in both ductile iron and malleable cast iron. We can currently provide fittings for pipes from 21.3mm to 60.3mm. Of course, we support customization, but there will be additional tooling costs. For surface finishing, we can provide hot-dip galvanizing, double galvanizing, and powder coating. Of course, we can also provide raw black.
Our technical team continuously improves production technology to improve production efficiency while ensuring quality. The foundry has advanced equipment and experienced workers, and can complete orders faster under reasonable scheduling. The strictly managed logistics team can complete the transfer of goods faster and complete the transportation inland China. The International Freight Consulting Center can help you find a more suitable transportation method and company to complete the final delivery of the goods.
With the improvement of technology, production efficiency, raw material utilization, and finished product rate have been greatly improved. We can reduce production costs to the greatest extent. Our perfect supply chain can reduce the total cost of orders from raw material procurement, packaging, transportation and more. You can get the same quality of Galvanized Safety Railing Fittings from us at a lower price. And the larger the quantity, the cheaper it is.
We are constantly enriching the content of our services and improving the quality of our services. We are committed to becoming your office in China and using the convenience of the Internet to report the progress of order production to you in various ways. You can participate in production through video calls. With us, you can easily complete procurement tasks again and again.
HULK Metal
The Most Trusted Galvanized Safety Railing Fittings Suppliers In China.
HULK Metal has been providing high-quality galvanized safety railing fittings production services to customers around the world since the beginning of the 21st century. And based on this, it has developed into its current scale. We have integrated a full range of supply chains including raw material supply, order production, packaging, transportation, and after-sales. Better service, better prices and higher quality are the reasons why customers continue to place more and more orders with us. We are also working hard for this. We look forward to you contacting us at any time to get the latest quotation.
119 Galvanized Safety Railing Fittings Two Socket Cross is a more important type of guardrail fittings. Its function is to supplement the pipes in the completed system to increase the density of the pipes to make the structure more stable or the guardrail safer.
In-depth understanding of your requirement.
Custom production solutions.
Schedule the production schedule.
Start producing you order.
Monitor production process.
Inspect the product quality irregularly.
Customized packaging solutions.
Pre-shipment inspection and arrangement of shipment.
After Service.
You can see them when our workers are working.
We will Show them to you with photo, vidio, or live chat any methods you want.
I recently used the HULK Metal 119 Galvanized Safety Railing Fittings Two Socket Cross for a railing project, and it was fantastic! The fitting is exceptionally durable with a solid galvanized finish that resists corrosion and ensures long-lasting performance. Its precise design made installation quick and easy, providing a secure and stable connection between the rails. This product is perfect for creating a reliable safety railing system. Highly recommend it for both industrial and residential applications!
